產品介紹

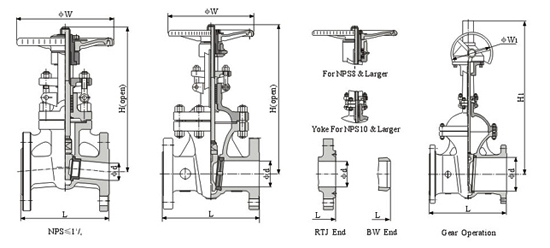

主要尺寸
磅級 |
規格 |
L |
d |
H |
H1 |
W |
W1 |
重量 |
NPS |
DN |
RF |
RTJ |
BW |
H.W |
G.O |
300 |
1/2 |
15 |
140 |
151 |
140 |
14 |
198 |
- |
120 |
- |
6 |
- |
3/4 |
20 |
152 |
165 |
152 |
19 |
215 |
- |
140 |
- |
7 |
- |
1 |
25 |
165 |
178 |
165 |
25 |
245 |
- |
160 |
- |
10 |
- |
11/4 |
32 |
178 |
191 |
178 |
32 |
306 |
- |
180 |
- |
15 |
- |
11/2 |
40 |
190 |
203 |
190 |
38 |
400 |
- |
200 |
- |
21 |
- |
2 |
50 |
216 |
232 |
216 |
51 |
420 |
- |
200 |
- |
25 |
- |
21/2 |
65 |
241 |
257 |
241 |
64 |
446 |
- |
200 |
- |
30 |
- |
3 |
80 |
283 |
298 |
283 |
76 |
537 |
- |
250 |
- |
48 |
- |
4 |
100 |
305 |
321 |
305 |
102 |
619 |
650 |
280 |
310 |
73 |
100 |
5 |
125 |
381 |
397 |
381 |
127 |
722 |
750 |
300 |
310 |
99 |
126 |
6 |
150 |
403 |
419 |
403 |
152 |
806 |
835 |
350 |
310 |
130 |
186 |
8 |
200 |
419 |
435 |
419 |
203 |
1000 |
1030 |
400 |
310 |
208 |
235 |
10 |
250 |
457 |
473 |
457 |
254 |
1240 |
1280 |
450 |
310 |
334 |
386 |
12 |
300 |
502 |
518 |
502 |
305 |
1425 |
1460 |
500 |
310 |
450 |
502 |
14 |
350 |
762 |
778 |
762 |
337 |
1585 |
1620 |
600 |
460 |
704 |
756 |
16 |
400 |
838 |
854 |
838 |
387 |
1790 |
1830 |
500 |
460 |
923 |
965 |
18 |
450 |
914 |
930 |
914 |
438 |
1960 |
2000 |
650 |
460 |
1131 |
1224 |
20 |
500 |
991 |
1010 |
991 |
489 |
2158 |
2220 |
750 |
460 |
1345 |
1400 |
24 |
600 |
1143 |
1165 |
1143 |
591 |
2576 |
2620 |
900 |
600 |
2122 |
2385 |
26 |
650 |
1245 |
1270 |
1245 |
633 |
- |
2850 |
- |
600 |
- |
3000 |
28 |
700 |
1346 |
1372 |
1346 |
684 |
- |
3080 |
- |
600 |
- |
3300 |
30 |
750 |
1397 |
1422 |
1397 |
735 |
- |
3180 |
- |
600 |
- |
3550 |
32 |
800 |
1524 |
1553 |
1524 |
779 |
- |
3300 |
- |
600 |
- |
4400 |
34 |
850 |
1626 |
1654 |
1626 |
830 |
- |
3550 |
- |
600 |
- |
5200 |
36 |
900 |
1727 |
1756 |
1727 |
874 |
- |
3760 |
- |
600 |
- |
|
|
| |
