產品介紹

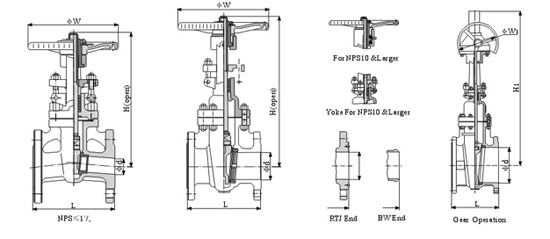

主要尺寸
磅級 |
規格 |
L |
d |
H |
H1 |
W |
W1 |
重量 |
NPS |
DN |
RF |
RTJ |
BW |
H.W |
G.O |
150 |
1/2 |
15 |
108 |
119 |
108 |
14 |
195 |
- |
120 |
- |
4 |
- |
3/4 |
20 |
117 |
130 |
117 |
19 |
210 |
- |
120 |
- |
5 |
- |
1 |
25 |
127 |
140 |
127 |
25 |
240 |
- |
140 |
- |
7 |
- |
11/4 |
32 |
140 |
153 |
140 |
32 |
300 |
- |
180 |
- |
10 |
- |
11/2 |
40 |
165 |
178 |
165 |
38 |
395 |
- |
200 |
- |
14 |
- |
2 |
50 |
178 |
191 |
216 |
51 |
400 |
- |
200 |
- |
19 |
- |
21/2 |
65 |
191 |
203 |
241 |
64 |
435 |
- |
200 |
- |
25 |
- |
3 |
80 |
203 |
216 |
283 |
76 |
515 |
- |
250 |
- |
33 |
- |
4 |
100 |
229 |
241 |
305 |
102 |
595 |
- |
280 |
- |
49 |
- |
5 |
125 |
254 |
267 |
381 |
127 |
725 |
- |
300 |
- |
62 |
- |
6 |
150 |
267 |
279 |
403 |
152 |
780 |
820 |
350 |
310 |
77 |
104 |
8 |
200 |
292 |
305 |
419 |
203 |
975 |
1020 |
400 |
310 |
123 |
150 |
10 |
250 |
330 |
343 |
457 |
254 |
1150 |
1200 |
450 |
310 |
188 |
215 |
12 |
300 |
356 |
368 |
502 |
304 |
1380 |
1430 |
500 |
310 |
288 |
315 |
14 |
350 |
381 |
394 |
572 |
337 |
1545 |
1580 |
500 |
310 |
385 |
435 |
16 |
400 |
406 |
419 |
610 |
387 |
1733 |
1780 |
500 |
460 |
500 |
552 |
18 |
450 |
432 |
445 |
660 |
438 |
1915 |
1990 |
600 |
460 |
601 |
653 |
20 |
500 |
457 |
470 |
711 |
489 |
2122 |
2220 |
600 |
460 |
764 |
816 |
24 |
600 |
508 |
524 |
813 |
591 |
2520 |
2600 |
- |
460 |
1007 |
1185 |
26 |
650 |
559 |
- |
864 |
633 |
- |
2800 |
- |
600 |
- |
1550 |
28 |
700 |
610 |
- |
914 |
684 |
- |
3050 |
- |
600 |
- |
1880 |
30 |
750 |
610 |
- |
914 |
735 |
- |
3130 |
- |
600 |
- |
2300 |
32 |
800 |
711 |
- |
965 |
779 |
- |
3280 |
- |
600 |
- |
2550 |
34 |
850 |
762 |
- |
1016 |
830 |
- |
3500 |
- |
600 |
- |
2950 |
36 |
900 |
711 |
- |
1016 |
874 |
- |
3720 |
- |
600 |
- |
3390 |
|
| |
